BDD Electrode Module

Online Inquiry PDF Format

Description Parameter Requirements Contact Information

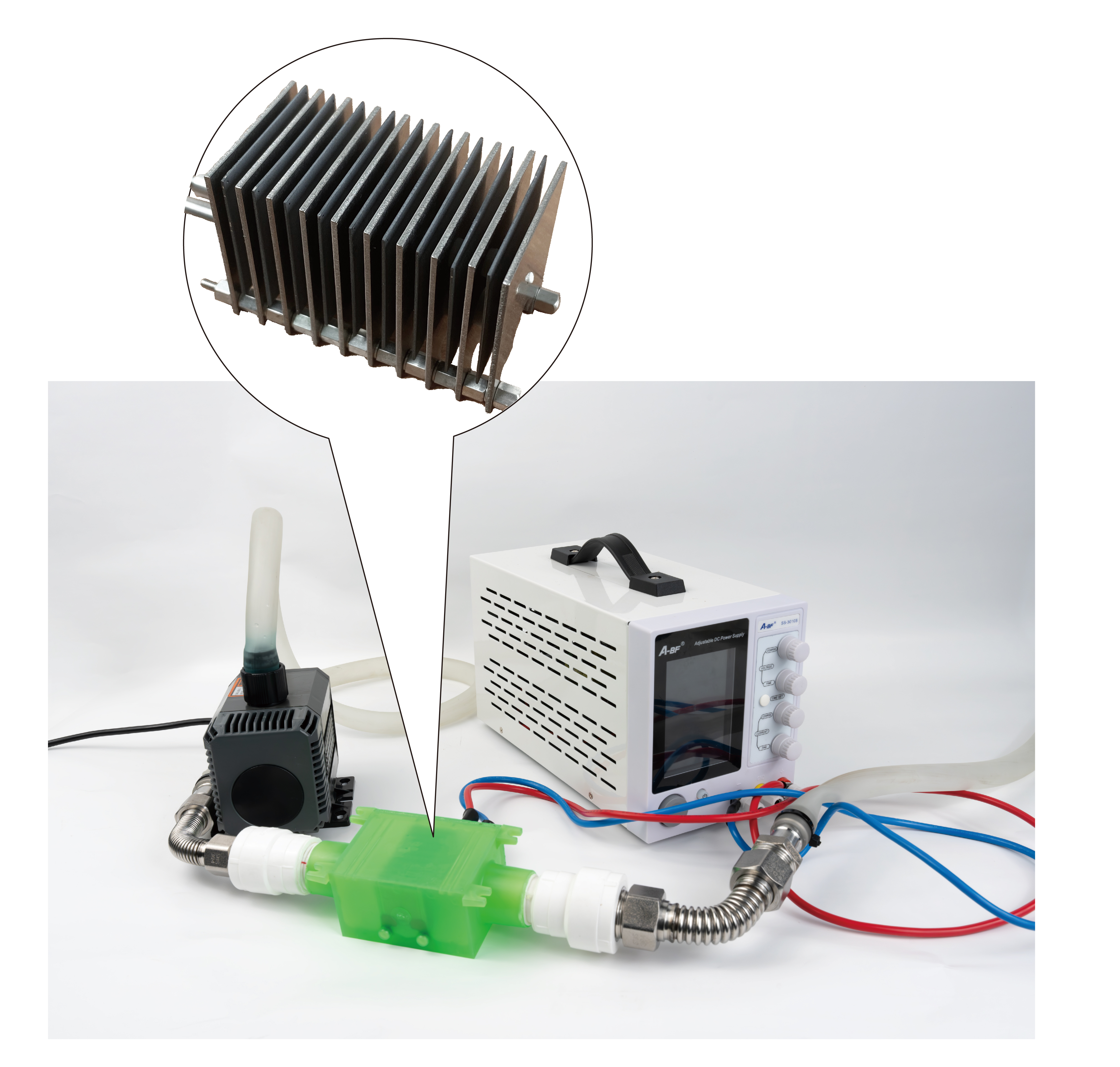

The electrolysis module consists of 9 pieces of 28*28 mm BDD anode sheets and 10 pieces of titanium cathode sheets，the distance between anode and cathode is 1.5-2 mm.
The effective diamond area of the module is 140 square centimeters.
The red wire is connected to the anode and connected to the positive pole of the power supply; the blue wire is connected to the cathode and connected to the negative pole of the power supply.

Advantages

a. To solve the immediate needs of end customers.
b. Can be used for various small experiments.
c. Large-scale projects can be used to provide preliminary test data, which is completely consistent with actual working conditions.
d. Standard modules can be connected in series and parallel to handle larger water volumes.
e. Modules can be replaced online without affecting the work of other modules.

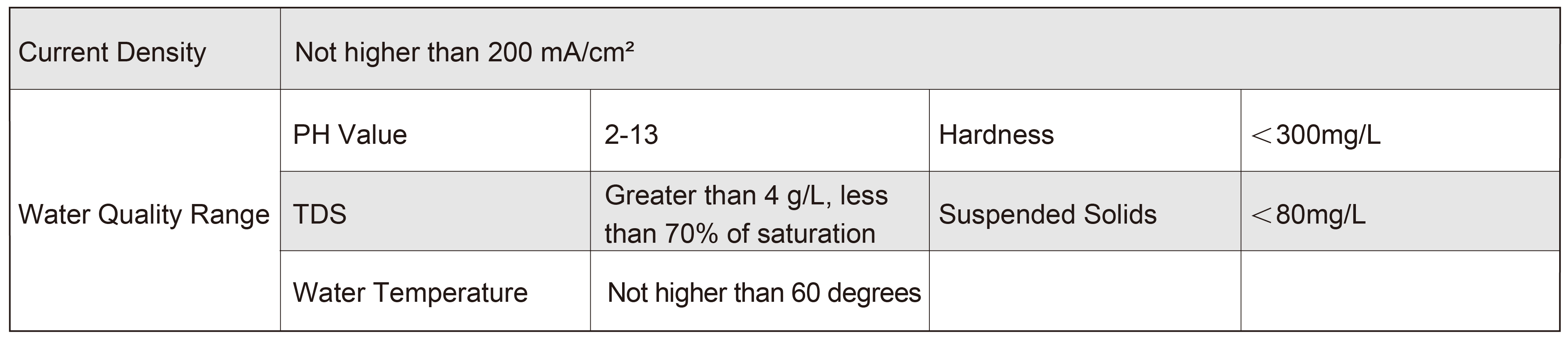

Parameter

Size	*6050200mm*	Resistivity	Less than 0.01 ohm cm
Oxygen Evolution Potential	Greater than 2.5 volts	Hydrogen Evolution Potential	Less than -1.0 volts

Requirements

Please feel free to contact us if you have any requirements!
