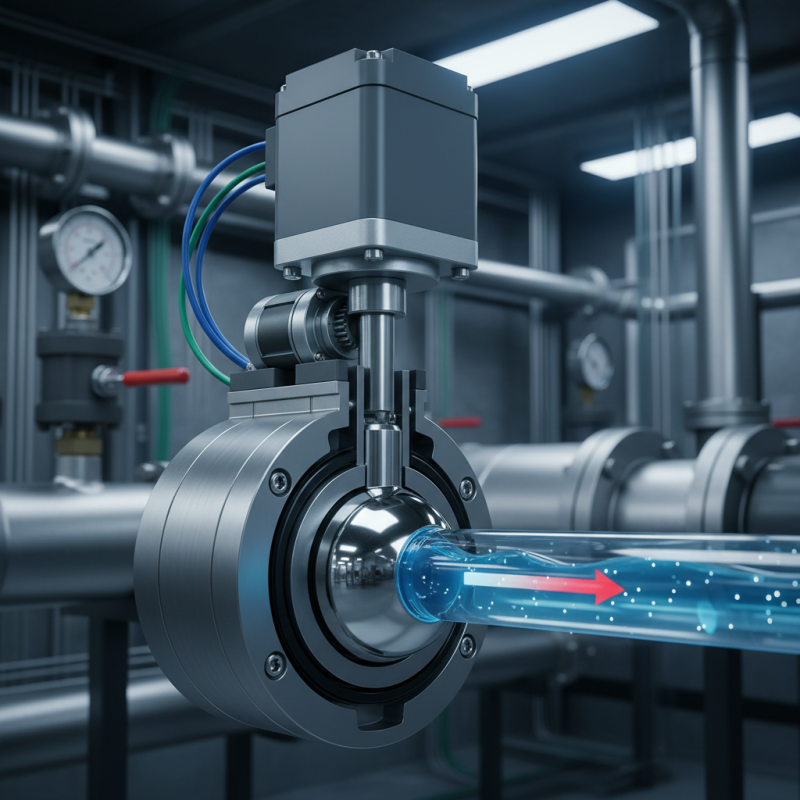

What is an Electric Ball Valve and How Does it Work?
Electric Ball Valves are essential components in various industries, controlling fluid flow with precision. Recent market research from Technavio highlights that the electric ball valve market is expected to grow by approximately 9% annually through 2026. This growth reflects an increasing demand for automation and efficient flow management.
According to Dr. Emily Carter, a leading expert in valve technology, "Electric ball valves offer unparalleled reliability and performance in fluid control." This sentiment resonates with many engineers who recognize their importance in applications ranging from water treatment to chemical processing. Their ability to operate swiftly and effectively reduces downtime and improves safety.
Despite these advancements, the industry faces challenges. Factors such as cost and maintenance can overshadow the benefits of electric ball valves. Many professionals grapple with balancing initial expenses against long-term savings. It's crucial for stakeholders to continuously reevaluate their systems to ensure optimal functionality and return on investment.
What is an Electric Ball Valve?
An electric ball valve is a device that controls fluid flow in pipes. It features a spherical disc with a hole in the center. When the valve is open, fluid passes through easily. When closed, the ball blocks the flow. This design provides reliable shutting off and precise control.
These valves are powered by electric actuators. The actuator opens or closes the valve based on signals from a control system. This allows for automation in various applications, such as in industrial processes or HVAC systems. However, the installation may require careful planning. Misalignment can lead to malfunction, affecting the entire system.
In practice, electric ball valves should be chosen carefully. They need to match the specific requirements of the application. Factors like pressure and temperature play a crucial role. Understanding these aspects can help avoid complications later. Some users may overlook these details and face issues down the line.
Components of an Electric Ball Valve
Electric ball valves are essential in many industries. Their simple design and efficient operation make them popular in fluid control systems. Understanding the components that drive these valves is crucial for their effective application.
At the core of an electric ball valve is the actuator. These devices convert electrical energy into mechanical motion. According to a recent market report, electric actuators are projected to grow at a CAGR of 6.5% over the next five years. This growth indicates increasing reliance on automated systems in various sectors. The actuator usually has a control system, which can be analog or digital. This flexibility allows for precise control of flow.
Another critical component is the ball itself. The ball is typically made from stainless steel or brass, ensuring durability and corrosion resistance. A quality electric ball valve may have a lifespan over 100,000 cycles, depending on its usage. The valve seat and seals, usually made from PTFE or other resilient materials, are equally vital. These components prevent leaks and ensure the system's reliability. However, some valves may face issues with wear and tear, leading to maintenance challenges. The balance between performance and longevity remains a key consideration in choosing the right valve for specific applications.
What is an Electric Ball Valve and How Does it Work? - Components of an Electric Ball Valve
| Component | Description | Function |
| Electric Actuator | A device that converts electrical energy into mechanical motion. | Controls the opening and closing of the valve. |
| Ball | A spherical component that controls flow through the valve. | Rotates to either allow or block flow. |
| Body | The main structure that houses the ball and actuator. | Contains and directs flow within the valve. |
| Stem | A rod that connects the actuator to the ball. | Transmits the motion from the actuator to the ball. |
| Seals | Gaskets or O-rings that prevent leakage. | Ensure tight closure of the valve to avoid leaks. |
How Electric Ball Valves Operate
Electric ball valves are essential components in modern fluid control systems. These valves operate using an electric motor to open and close a spherical ball inside the valve body. This ball has a hollow center, which allows fluid to flow through when aligned with the pipeline. When the motor rotates the ball 90 degrees, the flow is stopped. This design provides a quick and reliable way to manage fluid flow.
In terms of function, electric ball valves offer precise control. They can operate under various conditions and can maintain flow accuracy up to ±1%. Some reports indicate that automation in valve operation can increase efficiency by 20-30% in industrial applications. Flushing systems can also benefit due to the simplicity of design, making maintenance easier.
Tips: Regularly check the electric components for wear. Ensure the power supply is stable to maintain smooth operation. Misalignment can cause issues, so proper installation is crucial. Even small errors can lead to significant inefficiencies. Balancing performance and cost is vital for optimal results.
Applications of Electric Ball Valves
Electric ball valves are widely used in various industries due to their efficiency and precision. They can automate the flow of liquids and gases. This automation saves time and reduces human error. The design allows for quick opening and closing. This is essential in processes that require immediate response.
In the chemical industry, they play a critical role. Electric ball valves help control hazardous materials safely. They ensure that reactions occur under strict conditions. In the food and beverage sector, these valves maintain hygiene, preventing contamination during production. Their reliability is crucial in maintaining product quality.
Water treatment facilities also benefit from electric ball valves. They manage the flow of water effectively, which is important for maintaining balance in treatment processes. However, there can be challenges, such as maintenance issues. Sometimes, these valves may fail to operate as expected. Addressing such problems can require extra resources and time. Understanding the specific needs of each application helps in selecting the right valve.
Selecting the wrong type may lead to inefficiencies. It's vital to review and reflect on these aspects regularly.
Advantages of Using Electric Ball Valves
Electric ball valves offer several advantages that make them popular in various applications. One key benefit is their precise control over flow. They are designed to maintain a tight seal. This minimizes leaks, ensuring that fluid systems run efficiently. The ability to open and close quickly is another advantage. This feature can enhance system response times, which is vital in critical processes.
Maintenance is often simpler with electric ball valves. They typically have fewer moving parts compared to manual valves. This can lead to less wear and tear over time. However, this doesn’t mean that routine checks are unnecessary. Regular inspections are still important to ensure optimal performance.
Cost-effectiveness is another noteworthy aspect. While the initial investment might be higher, energy savings can offset costs in the long run. Still, it’s essential to evaluate if the higher upfront price is justified for your specific needs. Ultimately, the choice of using electric ball valves should align with the operational goals of your system.
