| Application: | Dressing and grinding tools |
| Tool Type: | Dressing logs |
| Brand: | Supower |
| Availability: | Production time 7 days |
APPLICATIONS |
| According to different use, Supower can meet the customers' request, CVD diamond dressing logs can be made into single and multi-point dressers, shaped tools for form and profile, diamond dressing rollers, jewelry processing, etc. |
| PRODUCT USAGE |
| Now we have three types CVD Diamonds（CVDD）.
They are Hot Filament CVD Diamond（CVDH）, NEW Hot Filament CVD Diamond（CVDN） and DC Arc Jet Plasma CVD Diamond（CVDJ）. |
| P | |||
| M | |||
| K | |||
| N | ● | ● | ● |
| S | |||
| H | |||
| Material | CVDH | CVDN | CVDJ |
MATERIAL INTRODUCTION
|
|||||||
| Material Introduction | Features | Application | |||||
| CVD Diamond | CVDD is a pure carbon material without binder with extreme abrasion resistance and good thermal suitability.Due to its perfect cutting edge suitable fro appications where mirror finishes are required. | Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications. | |||||
| PRODUCTION INFOMATION |
|||||||
| Dimension(Max) | Thickness | Blank | Tip | Dresser | |||
| Item | Color | mm | mm | μm | μm | μm | Finish |
| CVDH | Black | 25.4*25.4 | 0.3-1.3 | ±20/±50 | ±20/±50 | ±20/±50 |
Single Lap
Double Lap Single Polish
Double Polish
|
| CVDN | Black | 25.4*25.4 | 0.25-1.0 | ±20/±50 | ±20/±50 | ±20/±50 | |
| CVDJ | Semi Transparency | 70 | 0.5-1.3 | ±20/±50 | ±20/±50 | ±20/±50 | |
|

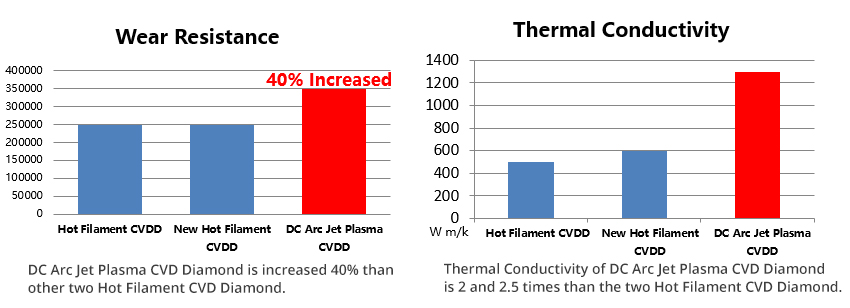

COMPARISON |
|||||||
 |
|||||||
| CLASSIFICATION |
|||||||
| Item | Picture |
Dresser Application |
Cutting Application |
Thermal Application |
|||

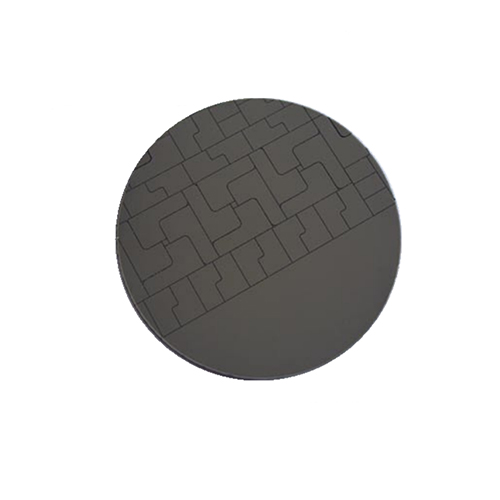

| CVDH |  |
★★★★ |
★★★★ |
★★★ |
|||
| CVDN |  |
★★★ |
★★★★★ |
★★★★ |
|||
| CVDJ |  |
★★★★★ |
★★★★ |
★★★★★ |
|||
| SPECIFICATIONS |
||||

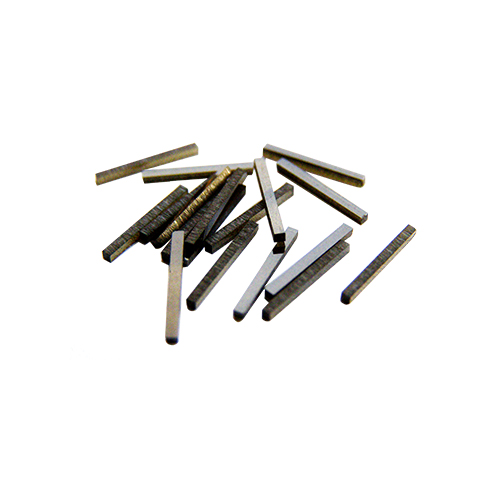

| Dressing bars | ||||
| 5.0*0.2*0.2t | 8.0*0.5*0.5t | 3.0*1.0*0.8t | 5.0*2.0*1.0t | 5.0*1.3*1.3t |
| 2.5*0.5*0.3t | 5.0*1.0*0.5t | 2.5*1.3*0.8t | 4.0*1.5*1.0t | 2.0*1.5*1.5t |
| 3.0*1.0*0.3t | 2.0*0.6*0.6t | 5.0*0.9*0.9t | 5.0*1.1*1.1t | 4.0*1.5*1.5t |
| 10.0*3.5*0.3t | 5.0*0.7*0.7t | 3.0*1.0*1.0t | 1.5*1.2*1.2t | 4.0*2.8*1.5t |
| 2.0*0.4*0.4t | 1.5*0.8*0.8t | 8.0*1.0*1.0t | 2.0*1.2*1.2t | 2.0*2.0*1.8t |
| 5.0*0.6*0.4t | 4.5*0.8*0.8t | 10.0*1.0*1.0t | 5.0*1.2*1.2 | 3.0*2.0*2.0t |
| 1.5*0.5*0.5t | 10.0*0.8*0.8t | 3.0*1.5*1.0t | 4.0*1.3*1.3t | 3.0*3.0*2.5t |

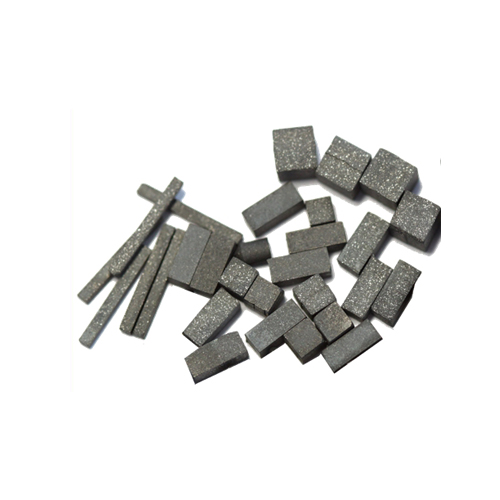

| Dressing Cubes | ||||
| Specifications | Applications | |||
| 0.6*0.6*0.6 | Dressing Rollers | |||
| 0.8*0.8*0.8 | Dressing Rollers | |||
| 1.0*1.0*1.0 | Single and Multi-point Dressers | |||
| 1.2*1.2*1.2 | Single and Multi-point Dressers | |||
| 1.5*1.5*1.5 | Single and Multi-point Dressers | |||
| 1.8*1.8*1.8 | Single and Multi-point Dressers | |||
| 2.0*2.0*2.0 | Single and Multi-point Dressers | |||
| 2.2*2.2*2.2 | Single and Multi-point Dressers | |||
| 2.5*2.5*2.5 | Single and Multi-point Dressers | |||
