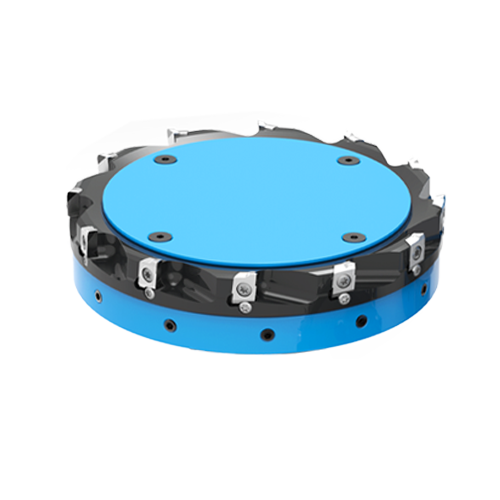

Worldia - Polycrystalline Diamond (PCD) Light-Weight Indexable milling cutter FMP160SC27-BE12-12

Model:	FMP160SC27-BE12-12
Brand:	WORLDIA
Availability:	In stock，immediate despatch
Place of origin:	Beijing,China
Capacity（Monthly）:	1000PCS

Online Inquiry Catalog Download PDF Format

Description Material Introduction Specifications Processing Cases

APPLICATIONS

WORLDIA PCD Indexable face milling with exclusive design has helped clients increase their capacity and reduce their tooling costs by allowing them to significantly increase speeds and feeds.

Aluminum and aluminum alloys
Copper, brass and bronze alloys
Zinc and magnesium alloys
Carbon Fiber
Epoxy resins
Plastics
Fiberglass composites
Graphite composites

Features

“Aluminum Alloy-Steel”double matal design,the aluminum center reduces the weight,while the hardened steel outer ring increases the rigidity speed and feeds
The double metal design makes the tooling lifetime several times longer than other aluminum face milling cutter.
High-precision pocket seat keeps 0.02mm axial runout without insert adjustment.
It can be easily adjusted to 2μm axial run out within 0.1 range.
Two cutting edges design and retip service which could help our customers reduce their cost.

PRODUCT USAGE

According to grain size and features of diamond，four types of PCD material，
i.e PD01E / PD10E / PD32E / CVDD are listed as below.

P
M
K
N	●	●	●	●
S
H
Material	PD01E	PD10E	PD32E	CVDD

STRUCTURE DETAILS

MATERIAL INTRODUCTION

Material	Grain size	Features	Application
PD10E	10	PD10E is the universal grade in the market.It`s the first choice for many applications where a good balance of toughness and wear resistance are required.	This Grade is commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF, low-medium content silicon aluminium alloys,carbide,hard rubber,graphite and so on.
PD32E	2-30	PD32E has a unique combination of wear resistance,edge strenth and edge quality.It contains a carefully sorted mix of micron diamond(Between 2 - 30 μm).The combination of these particle sizes and a specifically developed high pressure sintering process produces a structure with extreme abrasion resistance and good thermal stability.	Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.

MATERIAL PERFORMANCE

SPECIFICATIONS

		D	D1	D2	D3	L	Ap1 Max	Teeth	Weight
Specification	System Code	mm	mm	mm	mm	mm	mm	Z	Kg	max RPM	Material
FMP080SB27-BE12-08	040401060029	80	27	70	-	40	11	8	0.78	27500	Steel-aluminium
FMP100SB27-BE12-08	040401060028	100	27	70	-	40	11	8	1.12	23800	Steel-aluminium
FMP125SC27-BE12-12	040401060027	125	27	70	54	40	11	12	1.43	19100	Steel-aluminium
FMP160SC27-BE12-12	040401060026	160	27	70	54	50	11	12	2	14900	Steel-aluminium

PROCESSING CASES
