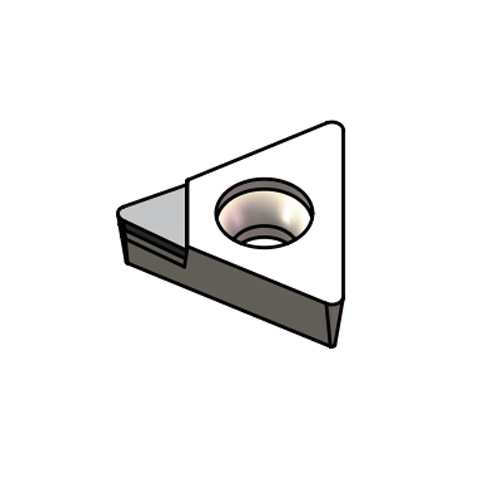

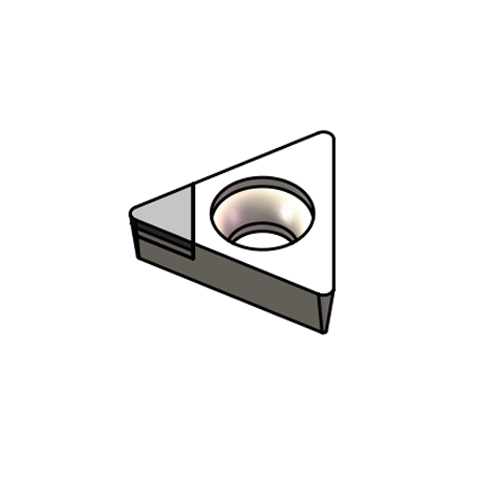

Worldia - TC Type Polycrystalline Diamond (PCD) Turning Insert - 60°

Model:	TC TYPE
Brand:	WORLDIA
Availability:	Delivery time 15days
Place of origin:	Beijing,China
Capacity（Monthly）:	20,000PCS

Online Inquiry PDF Format

Description Material Introduction Specifications

APPLICATIONS

PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.

Aluminum and aluminum alloys
Copper, brass and bronze alloys
Zinc and magnesium alloys
Carbon Fiber
Epoxy resins
Plastics
Fiberglass composites
Graphite composites

PRODUCT USAGE

According to grain size and features of diamond，four types of PCD material，
i.e PD01E / PD10E / PD32E / CVDD are listed as below.

P
M
K
N	●	●	●	●
S
H
Material	PD01E	PD10E	PD32E	CVDD

MATERIAL INTRODUCTION

Material	Grain size	Features	Application
PD01E	1	PD01E fine grain size PCD material(1μm) is suitble for finishing applications.Its high impart resistance and high abrasive resistance are no less than that of rough grade of PCD.	PD01E has excellent chip resistance is suitable for the roughing and interrupt cutting aluminium alloys.This grade is also commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF.
PD10E	10	PD10E is the universal grade in the market.It`s the first choice for many applications where a good balance of toughness and wear resistance are required.	This Grade is commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF.The machining of low-medium content silicon aluminium alloys,carbide,hard rubber,graphite and so on.
PD32E	2-30	PD32E has a unique combination of wear resistance,edge strenth and edge quality.It contains a carefully sorted mix of micron diamond(Between 2 - 30 μm).The combination of these particle sizes and a specifically developed high pressure sintering process produces a structure with extreme abrasion resistance and good thermal stability.	Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.
CVDD	-	CVDD is a pure carbon material without binder with extreme abrasion resistance and good thermal suitability.Due to its perfect cutting edge suitable fro appications where mirror finishes are required.	Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.

SPECIFICATIONS

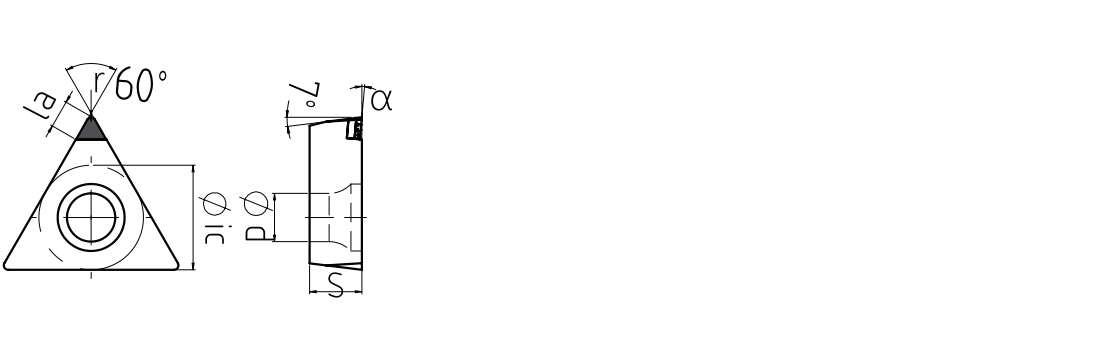

			Grade				ic	φd	s	α	re	la
ISO catalog number	ANSI catalog number	Tip Shape	PD01E	PD10E	PD32E	CVDD	mm	mm	mm	Degree	mm	mm
TCGW080202-1N P00P07	TCGW(1.5)(1.5)(0.5)-1N P00P07	CBST25S	●	●	●		4.76	2.4	2.38	0°	02	2.5
TCGT080202-1N P05P07	TCGT(1.5)(1.5)(0.5)-1N P05P07	CBST25S	●	●	●		4.76	2.4	2.38	5°	02	2.5
TCGT080202-1N P10P07	TCGT(1.5)(1.5)(0.5)-1N P10P07	CBST25S	●	●	●		4.76	2.4	2.38	10°	02	2.5
TCGW080204-1N P00P07	TCGW(1.5)(1.5)1-1N P00P07	CBST25S	●	●	●		4.76	2.4	2.38	0°	04	2.5
TCGT080204-1N P05P07	TCGT(1.5)(1.5)1-1N P05P07	CBST25S	●	●	●		4.76	2.4	2.38	5°	04	2.5
TCGT080204-1N P10P07	TCGT(1.5)(1.5)1-1N P10P07	CBST25S	●	●	●		4.76	2.4	2.38	10°	04	2.5
TCGW080208-1N P00P07	TCGW(1.5)(1.5)2-1N P00P07	CBST25S	●	●	●		4.76	2.4	2.38	0°	08	2.5
TCGT080208-1N P05P07	TCGT(1.5)(1.5)2-1N P05P07	CBST25S	●	●	●		4.76	2.4	2.38	5°	08	2.5
TCGT080208-1N P10P07	TCGT(1.5)(1.5)2-1N P10P07	CBST25S	●	●	●		4.76	2.4	2.38	10°	08	2.5
TCGW080202-1N P00P07	TCGW(1.5)(1.5)(0.5)-1N P00P07	SLST25S				●	4.76	2.4	2.38	0°	02	2.5
TCGT080202-1N P05P07	TCGT(1.5)(1.5)(0.5)-1N P05P07	SLST25S				●	4.76	2.4	2.38	5°	02	2.5
TCGT080202-1N P10P07	TCGT(1.5)(1.5)(0.5)-1N P10P07	SLST25S				●	4.76	2.4	2.38	10°	02	2.5
TCGW080204-1N P00P07	TCGW(1.5)(1.5)1-1N P00P07	SLST25S				●	4.76	2.4	2.38	0°	04	2.5
TCGT080204-1N P05P07	TCGT(1.5)(1.5)1-1N P05P07	SLST25S				●	4.76	2.4	2.38	5°	04	2.5
TCGT080204-1N P10P07	TCGT(1.5)(1.5)1-1N P10P07	SLST25S				●	4.76	2.4	2.38	10°	04	2.5
TCGW080208-1N P00P07	TCGW(1.5)(1.5)2-1N P00P07	SLST25S				●	4.76	2.4	2.38	0°	08	2.5
TCGT080208-1N P05P07	TCGT(1.5)(1.5)2-1N P05P07	SLST25S				●	4.76	2.4	2.38	5°	08	2.5
TCGT080208-1N P10P07	TCGT(1.5)(1.5)2-1N P10P07	SLST25S				●	4.76	2.4	2.38	10°	08	2.5

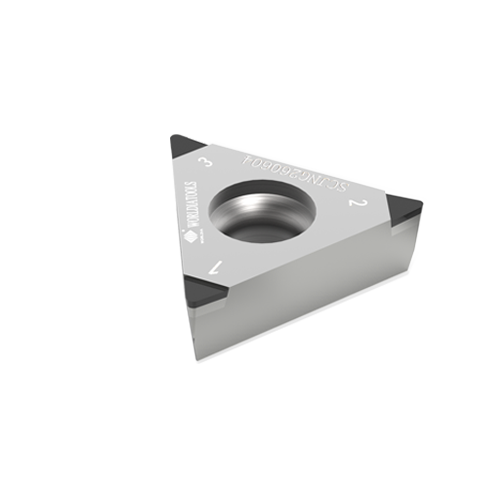

TCGW080202-3N P00P07	TCGW(1.5)(1.5)(0.5)-3N P00P07	CBST25S	●	●	●		4.76	2.4	2.38	0°	02	2.5
TCGT080202-3N P05P07	TCGT(1.5)(1.5)(0.5)-3N P05P07	CBST25S	●	●	●		4.76	2.4	2.38	5°	02	2.5
TCGT080202-3N P10P07	TCGT(1.5)(1.5)(0.5)-3N P10P07	CBST25S	●	●	●		4.76	2.4	2.38	10°	02	2.5
TCGW080204-3N P00P07	TCGW(1.5)(1.5)1-3N P00P07	CBST25S	●	●	●		4.76	2.4	2.38	0°	04	2.5
TCGT080204-3N P05P07	TCGT(1.5)(1.5)1-3N P05P07	CBST25S	●	●	●		4.76	2.4	2.38	5°	04	2.5
TCGT080204-3N P10P07	TCGT(1.5)(1.5)1-3N P10P07	CBST25S	●	●	●		4.76	2.4	2.38	10°	04	2.5
TCGW080208-3N P00P07	TCGW(1.5)(1.5)2-3N P00P07	CBST25S	●	●	●		4.76	2.4	2.38	0°	08	2.5
TCGT080208-3N P05P07	TCGT(1.5)(1.5)2-3N P05P07	CBST25S	●	●	●		4.76	2.4	2.38	5°	08	2.5
TCGT080208-3N P10P07	TCGT(1.5)(1.5)2-3N P10P07	CBST25S	●	●	●		4.76	2.4	2.38	10°	08	2.5
TCGW110302-1N P00P07	TCGW22(0.5)-1N P00P07	CBST25S	●	●	●		6.35	2.8	3.18	0°	02	2.5
TCGT110302-1N P05P07	TCGT22(0.5)-1N P05P07	CBST25S	●	●	●		6.35	2.8	3.18	5°	02	2.5
TCGT110302-1N P10P07	TCGT22(0.5)-1N P10P07	CBST25S	●	●	●		6.35	2.8	3.18	10°	02	2.5
TCGW110304-1N P00P07	TCGW221-1N P00P07	CBST25S	●	●	●		6.35	2.8	3.18	0°	04	2.5
TCGT110308-1N P05P07	TCGT221-1N P05P07	CBST25S	●	●	●		6.35	2.8	3.18	5°	04	2.5
TCGT110308-1N P10P07	TCGT221-1N P10P07	CBST25S	●	●	●		6.35	2.8	3.18	10°	04	2.5
TCGW110308-1N P00P07	TCGW222-1N P00P07	CBST25S	●	●	●		6.35	2.8	3.18	0°	08	2.5
TCGT110308-1N P05P07	TCGT222-1N P05P07	CBST25S	●	●	●		6.35	2.8	3.18	5°	08	2.5
TCGT110308-1N P10P07	TCGT222-1N P10P07	CBST25S	●	●	●		6.35	2.8	3.18	10°	08	2.5
TCGW110302-1N P00P07	TCGW22(0.5)-1N P00P07	SLST25S				●	6.35	2.8	3.18	0°	02	2.5
TCGT110302-1N P05P07	TCGT22(0.5)-1N P05P07	SLST25S				●	6.35	2.8	3.18	5°	02	2.5
TCGT110302-1N P10P07	TCGT22(0.5)-1N P10P07	SLST25S				●	6.35	2.8	3.18	10°	02	2.5
TCGW110304-1N P00P07	TCGW221-1N P00P07	SLST25S				●	6.35	2.8	3.18	0°	04	2.5
TCGT110304-1N P05P07	TCGT221-1N P05P07	SLST25S				●	6.35	2.8	3.18	5°	04	2.5
TCGT110304-1N P10P07	TCGT221-1N P10P07	SLST25S				●	6.35	2.8	3.18	10°	04	2.5
TCGW110308-1N P00P07	TCGW222-1N P00P07	SLST25S				●	6.35	2.8	3.18	0°	08	2.5
TCGT110308-1N P05P07	TCGT222-1N P05P07	SLST25S				●	6.35	2.8	3.18	5°	08	2.5
TCGT110308-1N P10P07	TCGT222-1N P10P07	SLST25S				●	6.35	2.8	3.18	10°	08	2.5
TCGW110302-3N P00P07	TCGW22(0.5)-3N P00P07	CBST25S	●	●	●		6.35	2.8	3.18	0°	02	2.5
TCGT110302-3N P05P07	TCGT22(0.5)-3N P05P07	CBST25S	●	●	●		6.35	2.8	3.18	5°	02	2.5
TCGT110302-3N P10P07	TCGT22(0.5)-3N P10P07	CBST25S	●	●	●		6.35	2.8	3.18	10°	02	2.5
TCGW110304-3N P00P07	TCGW221-3N P00P07	CBST25S	●	●	●		6.35	2.8	3.18	0°	04	2.5
TCGT110304-3N P05P07	TCGT221-3N P05P07	CBST25S	●	●	●		6.35	2.8	3.18	5°	04	2.5
TCGT110304-3N P10P07	TCGT221-3N P10P07	CBST25S	●	●	●		6.35	2.8	3.18	10°	04	2.5
TCGW110308-3N P00P07	TCGW222-3N P00P07	CBST25S	●	●	●		6.35	2.8	3.18	0°	08	2.5
TCGT110308-3N P05P07	TCGT222-3N P05P07	CBST25S	●	●	●		6.35	2.8	3.18	5°	08	2.5
TCGT110308-3N P10P07	TCGT222-3N P10P07	CBST25S	●	●	●		6.35	2.8	3.18	10°	08	2.5
TCGW160402-1N P00P07	TCGW33(0.5)-1N P00P07	CBST25S	●	●	●		9.525	4.4	4.76	0°	02	2.5
TCGT160402-1N P05P07	TCGT33(0.5)-1N P05P07	CBST25S	●	●	●		9.525	4.4	4.76	5°	02	2.5
TCGT160402-1N P10P07	TCGT33(0.5)-1N P10P07	CBST25S	●	●	●		9.525	4.4	4.76	10°	02	2.5
TCGW160404-1N P00P07	TCGW331-1N P00P07	CBST25S	●	●	●		9.525	4.4	4.76	0°	04	2.5
TCGT160404-1N P05P07	TCGT331-1N P05P07	CBST25S	●	●	●		9.525	4.4	4.76	5°	04	2.5
TCGT160404-1N P10P07	TCGT331-1N P10P07	CBST25S	●	●	●		9.525	4.4	4.76	10°	04	2.5
TCGW160408-1N P00P07	TCGW332-1N P00P07	CBST25S	●	●	●		9.525	4.4	4.76	0°	08	2.5
TCGT160408-1N P05P07	TCGT332-1N P05P07	CBST25S	●	●	●		9.525	4.4	4.76	5°	08	2.5
TCGT160408-1N P10P07	TCGT332-1N P10P07	CBST25S	●	●	●		9.525	4.4	4.76	10°	08	2.5
TCGW160402-1N P00P07	TCGW33(0.5)-1N P00P07	SLST25S				●	9.525	4.4	4.76	0°	02	2.5
TCGT160402-1N P05P07	TCGT33(0.5)-1N P05P07	SLST25S				●	9.525	4.4	4.76	5°	02	2.5
TCGT160402-1N P10P07	TCGT33(0.5)-1N P10P07	SLST25S				●	9.525	4.4	4.76	10°	02	2.5
TCGW160404-1N P00P07	TCGW331-1N P00P07	SLST25S				●	9.525	4.4	4.76	0°	04	2.5
TCGT160404-1N P05P07	TCGT331-1N P05P07	SLST25S				●	9.525	4.4	4.76	5°	04	2.5
TCGT160404-1N P10P07	TCGT331-1N P10P07	SLST25S				●	9.525	4.4	4.76	10°	04	2.5
TCGW160408-1N P00P07	TCGW332-1N P00P07	SLST25S				●	9.525	4.4	4.76	0°	08	2.5
TCGT160408-1N P05P07	TCGT332-1N P05P07	SLST25S				●	9.525	4.4	4.76	5°	08	2.5
TCGT160408-1N P10P07	TCGT332-1N P10P07	SLST25S				●	9.525	4.4	4.76	10°	08	2.5
TCGW160402-3N P00P07	TCGW33(0.5)-3N P00P07	CBST25S	●	●	●		9.525	4.4	4.76	0°	02	2.5
TCGT160402-3N P05P07	TCGT33(0.5)-3N P05P07	CBST25S	●	●	●		9.525	4.4	4.76	5°	02	2.5
TCGT160402-3N P10P07	TCGT33(0.5)-3N P10P07	CBST25S	●	●	●		9.525	4.4	4.76	10°	02	2.5
TCGW160404-3N P00P07	TCGW331-3N P00P07	CBST25S	●	●	●		9.525	4.4	4.76	0°	04	2.5
TCGT160404-3N P05P07	TCGT331-3N P05P07	CBST25S	●	●	●		9.525	4.4	4.76	5°	04	2.5
TCGT160404-3N P10P07	TCGT331-3N P10P07	CBST25S	●	●	●		9.525	4.4	4.76	10°	04	2.5
TCGW160408-3N P00P07	TCGW332-3N P00P07	CBST25S	●	●	●		9.525	4.4	4.76	0°	08	2.5
TCGT160408-3N P05P07	TCGT332-3N P05P07	CBST25S	●	●	●		9.525	4.4	4.76	5°	08	2.5
TCGT160408-3N P10P07	TCGT332-3N P10P07	CBST25S	●	●	●		9.525	4.4	4.76	10°	08	2.5
